YW5010 water jet cutting machine is mainly used for cutting sponge, rubber, etc. The machine is very easy to operate, and it is friendly to the environment when working, customer no need to spend much time for maintenance. It provides die makers with faster and more efficient die making service.
產品詳情
● YW5010 water jet cutting machine is mainly used for cutting sponge, rubber, etc.
獨特的功能
● Quick response. There is no need to wait long time for start and running the machine.
● Can cut max. 60mm sponge/foam, 20mm rubber/VULCAN，cork rubber，2-3mm acrylic board
● Simple cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw. Editing path is very easy and convenient.

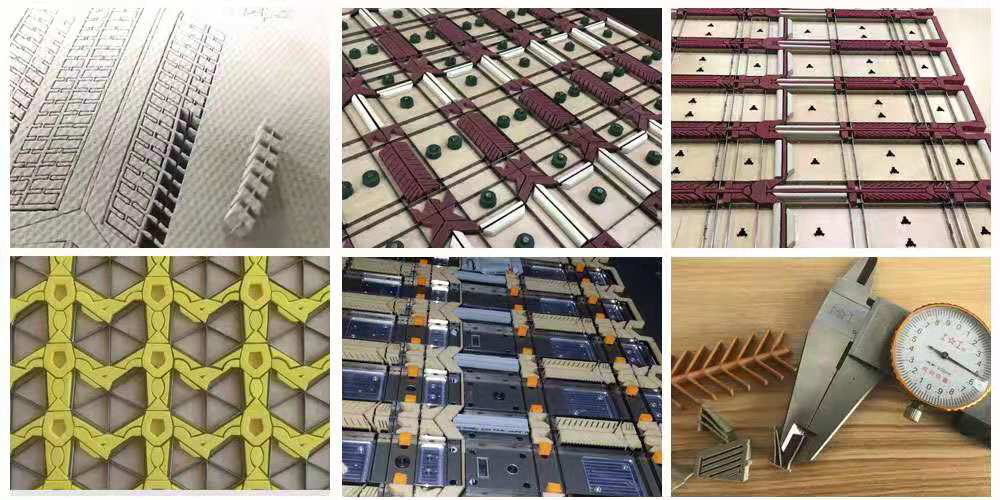

● Any kinds of shapes for die making slot, cut materials: ejection rubber, Vulcan, sponge, foam.
● Cutting speed up to 10m/minute.
● Easy maintenance and operation system.
● Friendly to environment, no pollution.
● Save labor time of the die making.
● Improvement for the beautiful outlook of cutting die.
● Low consumption cost - Only use water to cut.
技術指標
| Model No. | YW5010 |
| X-axis travel-length | 1000mm |
| Y-axis travel-length | 500mm |
| Cutting speed | 10m/min |
| Cutting speed（14mm 60shore rubber） | 4-5m/min |
| Positioning Precision | 0.05mm |
| Max weight of table load | 100KG |
| Resolving power | 0.001 |
| ID of water jet beam | 0.13mm |
| Power | 380V/7.5KW (three-phase supply) |
| Overall dimensions (L*W*H) | 1000*1500*1100mm |
| G. Weight | 1300kg |
| Cutting thickness | 1-60mm |
