產品詳情
JCPY-1225 Flat & Rotary die board laser machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.
With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make both flat and rotary dies.

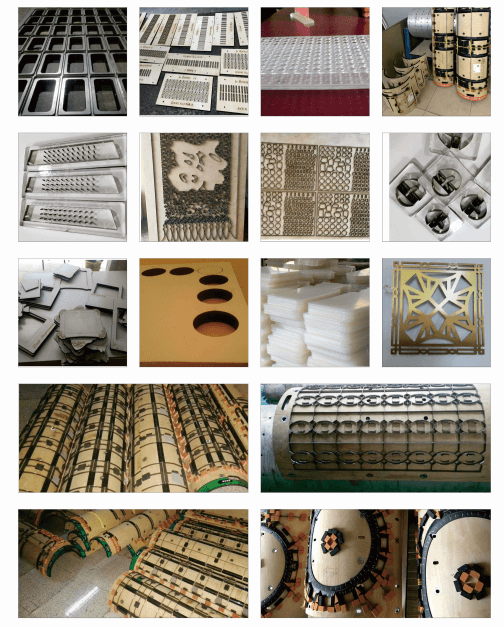

CUTTING SAMPLE & APPLICATION AREA:
技術指標
| Model No. | JCPY-1225 | |
| Power | 1000W | |
| The table moving | Gantry construction | |
| Laser output power | High power axial flow CO2 laser source | |
| X-axis travel | 2440mm | |
| Y-axis travel | 1220mm | |
| Z-axis travel | 120mm | |
| The maximum cutting board size | 170~800*3000mm | |
| Cutting speed | Flat: 70~90m/h | Rotary: 45-55m/h |
| Re-Positioning Precision | ≤0.02mm | |
| Controlling system | Germany PA | |
| Transmission system | Ball screw & Linear guide (TAIWAN) | |
| Driving system | Japan high-precision servo drive and motors | |
| Optical system | US | |
| Moving structure | Gantry | |
| Chiller system | Made in China | |
| Laser generator gas matched | He, N2, CO2 (99.999%) | |
| Laser cutting thickness | 0.1-30mm | |
